Delivery Silos

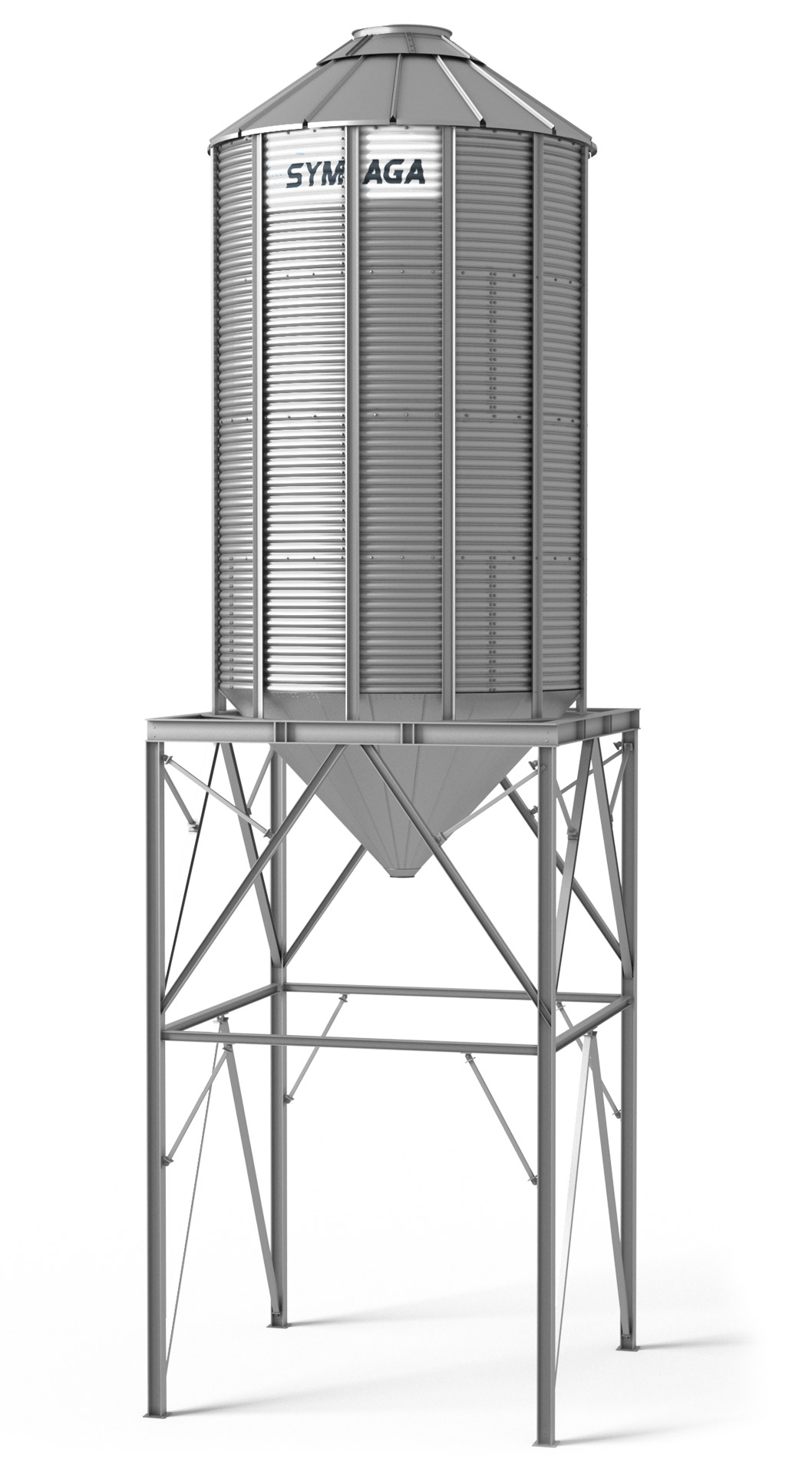

Symaga provides delivery Silos that are used to unload grain into trucks or trains.
These silos, designed for daily storage, facilitate the trasnfering of grain from high capacity silos to delivery silos, to be placed in the container.
Diameters
3.00 to 6.10 m
Capacitiy Volumes
27 m³ up to 267 m³
Guaranteed steel
S450 GD Steel with Z600g/m² coating on the cylinder and S280GD ZM310 g/m² on the roof
Structure calculation
ANSI - ASAE EP 433 2033, EUROCODE EN - 1991-4 or any different required norm
Silo components
Roofs//
Flexilibity and máximum endurance
Trapezoidal sector
| Material | |
|---|---|
|
Steel |
S280GD. according to EN 10346:2015 |
|
Galvanisation |
ZM310 according to EN 10346:2015 |
|
Breaking load |
360 N/mm2 |
|
Yield strength |
280 N/mm2 |
|
Thickness |
e= 0.8 |
Design and Technical Characteristics/specification
Roof wave. Symaga special design to improve water evacuation/drainage
Longitudinals folds to improve rigidity.
Pre-drilled for roof vent.
Reinforcement roof wave to increase resistance when required.
Technical sheet >
Roof Collar
| Material | |
|---|---|
|
ROOF COLLAR |
|
|
Galvanised Steel |
S275 JR according to EN 10025-2:2020 |
|
Galvanisation |
HDG according to EN ISO 1461:2023
|
|
Profile |
“Z” curved |
|
Thickness |
e= 3mm |
|
FALDON. |
|
|
Galvanised Steel |
S280 GD according to EN 10346:2015 |
|
Galvanisation |
Z600 according to EN 10346:2015
|
|
Thickness |
e= 2mm |
|
LOADING PORT |
|
|
Galvanised Steel |
S275 JR according to EN 10025-2:2020 |
|
Galvanisation |
HDG according to EN ISO 1461:2023 |
|
Thickness |
e= 3 y 5 mm |
|
LOADING MOUTH COVER |
|
|
Galvanised Steel |
S280 GD according to EN 10346:2015
|
|
Galvanisation |
Z600 according to EN 10346:2015 |
|
Thickness |
e= 3 and 5 mm |
Design and technical characteristics
Roof collar: Circular structure for the union and support of beams and roof sectors.
Skirt: Circular sector supported on the roof collar and on which the load mouth is fixed.
Loading mouth: Shaped plate supported on the skirt and on which the roof cover is supported. Dimensions: 800 mm (silos 4.60 : 16.80) and 1050 mm (silos 17.57 : 19.86).
Loading mouth cover: Square plate fixed to the loading mouth to close the silo on which the loading systems are placed.
Technical sheet >
Cylinder//
Precision Manufacturing and Efficient Design
Bodysheets
| Material | |
|---|---|
|
Steel |
S450GD EN 10346:2015 |
|
Galvanisation |
S450GD EN 10346:2015 |
|
Breaking load |
510 N/mm2 |
|
Yield strength |
450 N/mm2 |
|
Thickness |
e= 0,8 a 4 mm |
Design and technical characteristics
Undulation: 76×14 mm
Usable height: 1140 mm
Usable length: 2400 mm
Technical data >
Stiffener
| Material | |
|---|---|
|
Steel |
S450GD according to EN 10346:2015 |
|
Galvanización |
Z600 EN 10346:2015 |
|
Breaking load. |
510 N/mm2 |
|
Yield strength. |
450 N/mm2 |
|
Thickness |
e= 1.5 to 4 mm |
Design and Technical Characteristics
Omega profile. Special design to support vertical load
Drilling. Every 76mm
UPN type with steel S355JR+HAG, for large loads
Technical data >
TOLVA//
| Material | |
|---|---|
|
Steel |
S450GD UNE-EN 10346:2015 |
|
Sectors |
|
|
Galvanisation |
Z600 UNE-EN 10346:2015 |
|
Strengths |
|
|
Breaking load. |
510 N/mm2 |
|
Yield strength |
450 N/mm2 |
|
Thickness |
e= 2 mm to 4 mm |
|
Discharge port. |
S275 JR + HDG |
|
Thickness |
e= 3 mm |
Design and Technical Characteristics
Composed of interconnected hoppersheets, joined to the cylinder and to the hopper cone
Slope 45º & 60º
Technical data >
OTHER STANDARD COMPONENTS//
MATERIAL:
Hot dip galvanised (M 10: 70 – 85 and M8 50 – 80 micron zinc)
Extra strength and extra corrosion protection.
DESIGN AND FEATURES:
Plate washer with neoprene gasket
Delivery: Pre-assembled
Quality: 8.8 and 10.9
Pre-assembled washer to avoid on-site work.
Technical data >
Supplied with double cord to ensure optimum sealing.
Technical data >
